Conical Spring Mechanical Seal - Pump Seals

Pump Seals

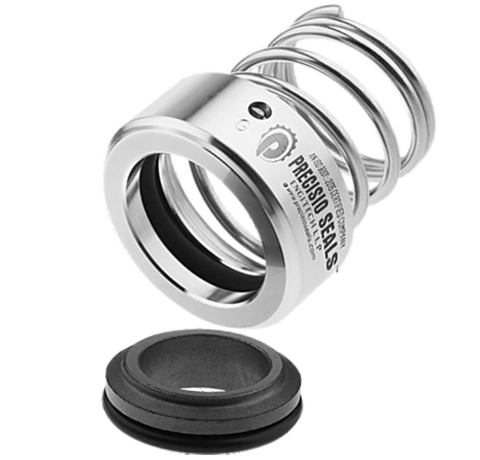

Conical Spring Mechanical Seal

Code: PS38CS

Conical spring seals engineered to enhance flexibility and performance, delivering secure and efficient sealing for diverse pumping applications.

Request a Quote

Operating Limits

  • Shaft dia 12mm to 90mm
  • Pressure 10 bar(max)
  • Temperature -20°C to 120°C
  • Speed 2900 RPM(max)

Seal Face Material:

Carbon, Silicon Carbide, Tungsten Carbide, Stellite.

Secondary Sealing:

Silicon, Viton, PTFE, NEOPRENE, EPDM.

Metal Components:

SS 316, SS 304.

Application

Maintenance Free, Leak Proof, Optimum Thickness, Inside Mounted General Chemical, Sewage Plant, Waste Water.

Features

Acid & Acidic Fluids, General and Light Chemical, Extremely Corrosive Services.
