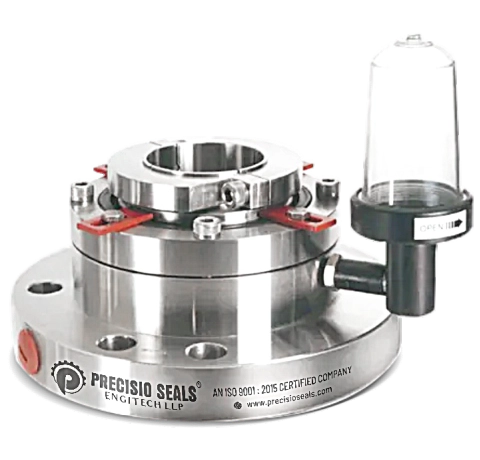

Dry Mechanical Seal - Agitator Seals

Agitator Seals

Dry Mechanical Seal

Code: PS80DS

Dry running seals designed for mixers and pumps without lubrication, ensuring safe, clean operation and reduced energy consumption.

Request a Quote

Operating Limits

  • Shaft dia 20mm to 200mm
  • Pressure 10 bar(max)
  • Temperature -20°C to 180°C
  • Speed 20 m/s

Seal Face Material:

ROTARY : Carbon, STATIONARY : Silicon.

Secondary Sealing:

Viton, TTV, FKM, TCV, PTFE, EPR, EPDM.

Metal Components:

SS 316, SS 304.

Application

Chemical Process Pump, Oil Refineries, Thermal Power Plants, Nuclear Plant, Petroleum, Paper, Pulp Industries and all the Marine Industries.

Features

Dry Mechanical Seals are outside mounted balanced mechanical seal, which require no shaft or sleeve step for balancing seal shows good performance in high vaccum conditions. Since no auxiliary equipments are needed for installation, it is very cost effective & economical. These seal can be easily installed & repaired on the feild to minimized replacements costs & downtime.
