Metal Bellow Cartridge Seal - Cartridge Seals

Cartridge Seals

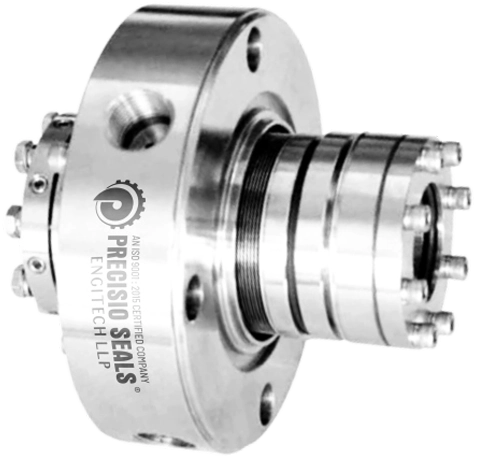

Metal Bellow Cartridge Seal

Code: PS22MBC

Metal bellow cartridge seals built for corrosive and high-temperature media, combining durability with simplified cartridge-style installation.

Request a Quote

Operating Limits

  • Shaft dia 25mm to 150mm
  • Pressure Up to 25 bar (40*)
  • Temperature -40°C to 450°C
  • Speed 2900 RPM(max)

Seal Face Material:

Carbon, Silicon Carbide, Tungsten Carbide, Stellite.

Secondary Sealing:

Graphite, Flexible Graphite, PTFE.

Metal Components:

SS 316, SS 304.

Application

Food Industries, Hot Oil, Beverages Industries for beer, fruit juices and fruit syrups, High - temperature, corrosive, or dirty media. Refinery, petrochemical and Pulp and Paper Industries.

Features

Long Life, Durability, Abrasive Resistance, Slip Free, Stick Free, Simple Installation, High Static and Dynamic Sealing Extrusion Free, With Standing a very high range of temperature and pressure, High abrasion resistance.
