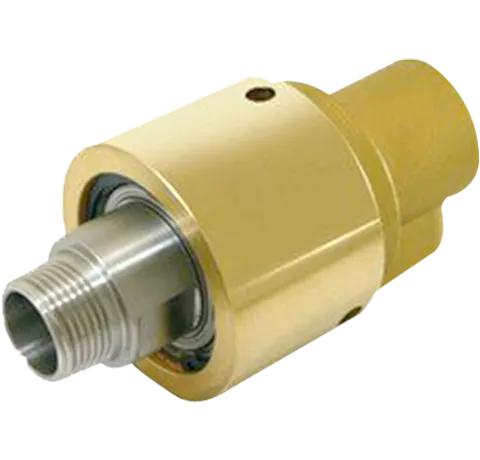

Rotary Joint Mechanical Seal - Rotary Union

Rotary Union

Rotary Joint Mechanical Seal

Code: PS01RJ

Rotary joint seals designed for rotating machinery, enabling efficient fluid transfer with high accuracy and long-lasting sealing performance.

Request a Quote

Operating Limits

  • Sizes 1/4" to 3"
  • Pressure 65 bar(max)
  • Temperature 120ÂșC
  • Speed 2500 RPM"

Seal Face Material:

Carbon, Silicon Carbide, Tungsten Carbide.

Secondary Sealing:

Grafoil, Viton, TTV, PTFE, EPR, EPDM, NBR.

Metal Components:

SS 316, SS 304.

Application

Chemical Process Pump, Oil Refineries, Water, Hote Water, Hot Oil, Thermal Power Plants, Acid Pumps, Petroleum & Paper Industries, Pulp Industries and Marine Inudustries.

Features

Rotor connection options : BSP, NPT, UNF, UNC, METRIC THREAD are available. Built in flange connection and quick change flange connection are also available. No external support required : self supporting on two precision ball bearings far enough to reduce vibration & wobbling. Balanced mechanical seal : minimises operating torque & enhances life. Seal faces are self lubricating. Carbon (Resin impregnated) and silicon carbide with suitable elastomeric secondary sealing. 0r as per the requirement.
