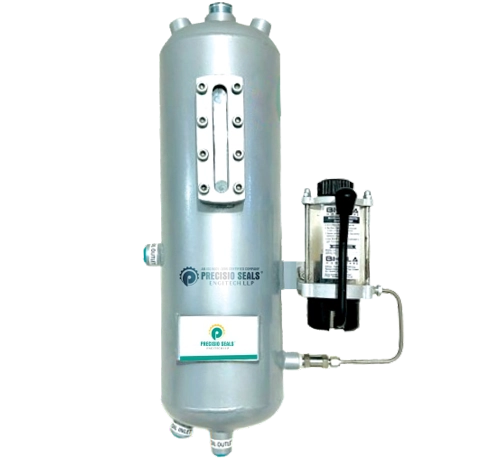

Thermosyphon Pot System - Seal Support System

Seal Support System

Thermosyphon Pot System

Code: PS300TPS

Thermosyphon pot systems provide cooling and lubrication for mechanical seals, extending pump life and improving system reliability.

Request a Quote

Operating Limits

  • Shaft dia 0-40 Bar
  • Level gauge To indicate Barrier Fluid
  • Manual deed pump Optional
  • Tank capacity 10 Litres

Available in Stainless Steel Grades:

SS304 / SS316 (optional).

Optional Accessories:

Pressure gauge, Safety relief valve, Thermometer.

Seal Features:

  • Total Tank Capacity: 10 Litres
  • Operating Volume: 2 Litres
  • Maximum Operating Pressure: 20 kg/cm2
  • Working Temperature Range: 60C to +200c
  • Hydraulic Test Pressure: 15 bar
  • Cooling Water Inlet: 1/2" npt
  • Cooling Water Outlet: 1/2" npt
  • Barrier Fluid Inlet: 1/2" npt
  • Barrier Fluid Outlet: 1/2" npt
  • Drain Connection: 1/2" npt

Application

Used for circulating and transferring heat in closed-loop thermosyphon systems, reactors, and heat exchangers in chemical and petrochemical industries.

Features

A compact pressurizing and cooling unit for double mechanical seals. Ensured continuous barrier fluid circulation, stable remperature, and longer seal life using the thermosyphon principle. Custom capacities available up to 20 Litres.
