Capsulated Spring Mechanical Seal - Pump Seals

Pump Seals

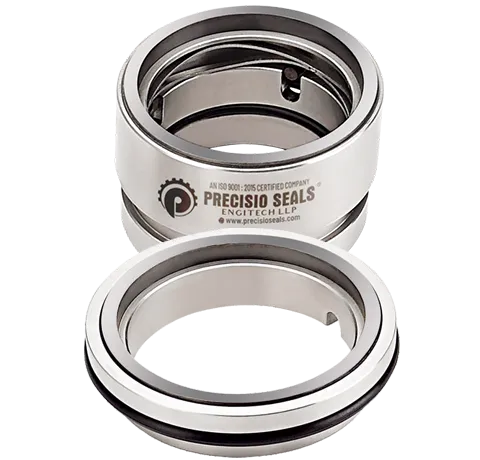

Capsulated Spring Mechanical Seal

Code: PS97HJ

Capsulated spring seals that prevent clogging and contamination, delivering smooth performance and reliability in slurry and dirty media pumps.

Request a Quote

Operating Limits

  • Shaft dia 18mm to 100mm
  • Pressure 20 bar(max)
  • Temperature -20°C to 160°C
  • Speed 2900 RPM(max)

Seal Face Material:

Carbon, Silicon Carbide, Tungsten Carbide, Stellite.

Secondary Sealing:

Elostomer “O” Ring, Silicon, Viton, PTFE, TCV.

Metal Components:

SS 316, SS 304.

Application

Chemical Process Pump, Oil Refineries, Thermal Power Plants, Nuclear Plant, Petroleum, Paper, Pulp Industries and all the Marine Industries.

Features

Single Acting, Inside Mounted, Dependent Of Direction of Rotation.
