D Type Multispring Mechanical Seal - Pump Seals

Pump Seals

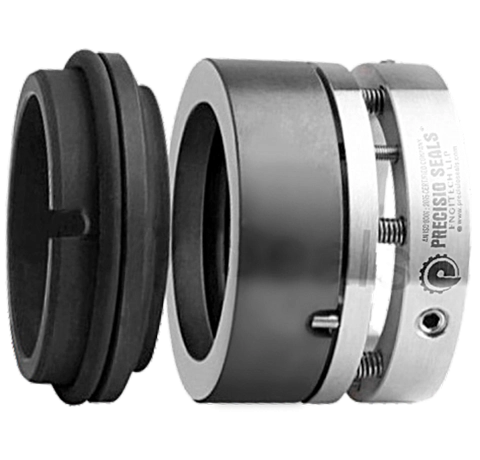

D Type Multispring Mechanical Seal

Code: PS76DMS

Heavy-duty D Type Multispring seals engineered for pumps in demanding conditions, ensuring maximum durability, leak protection, and low maintenance.

Request a Quote

Operating Limits

  • Shaft dia 20mm to 100mm
  • Pressure 25 bar(max)
  • Temperature -20°C to 180°C
  • Speed 2900 RPM(max)

Seal Face Material:

Carbon, Silicon Carbide, Tungsten Carbide, Stellite.

Secondary Sealing:

Silicon, Viton, PTFE, NITRILE, EPDM.

Metal Components:

SS 316, SS 304.

Application

Generally used in Chemical Process Pump, Oil Refineries, Thermal Power Plants, Nuclear Plant, Petroleum, Paper, Pulp Industries and all the Marine Inudustries.

Features

Maintenance Free, Long Service Life , Optimum Thickness, Inside Mounted.
