Metal Bellow Mechanical Seal - Pump Seals

Pump Seals

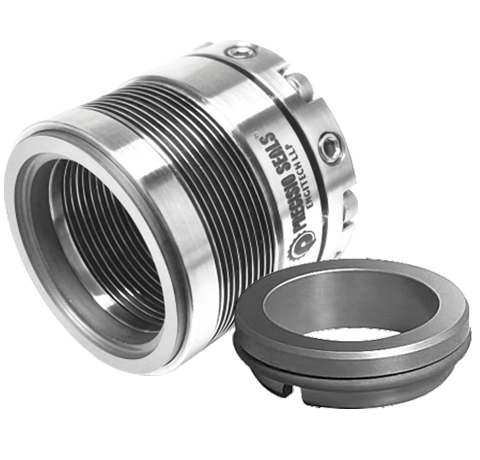

Metal Bellow Mechanical Seal

Code: PS21MB

Metal bellow seals designed for high-temperature and corrosive media, offering flexibility and maintenance-free sealing in pump systems.

Request a Quote

Operating Limits

  • Shaft dia 20mm to 100mm
  • Pressure 18 bar(max)
  • Temperature -20°C to 300°C
  • Speed 2900 RPM(max)

Seal Face Material:

Carbon, Silicon Carbide, Tungsten Carbide, Stellite.

Secondary Sealing:

EPDM, Aflas, Viton, PTFE, NEOPRENE.

Metal Components:

SS 316, SS 304.

Application

Food Industries, Hot Oil, Beverages Industries for beer, fruit juices and fruit syrups, Water businesses for containing RO water and purified water, Dying and pigmenting industries Textile industry, Water proofing industry, Water treatment plants, etc.

Features

Long life, Durability, Abrasive resistance, Slip free, Stick free, Simple installation, High static and dynamic sealing Extrusion free, With standing a very high range of temperature and pressure, High abrasion resistance.
