Utility Mechanical Seal - Pump Seals

Pump Seals

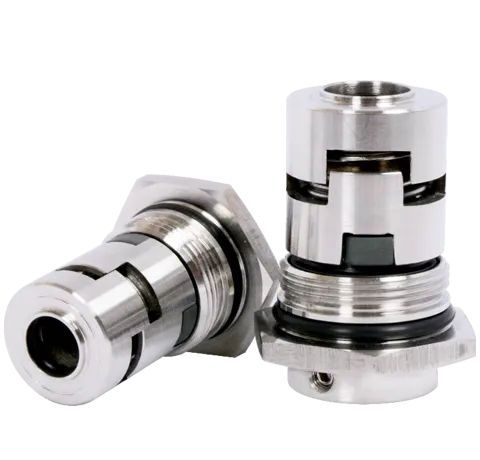

Utility Mechanical Seal

Code: PS44GF

Cost-effective utility mechanical seals built for general-purpose pumps, offering dependable performance and simplified maintenance.

Request a Quote

Operating Limits

  • Shaft dia 12mm, 16mm, 22mm
  • Pressure 10 bar(max)
  • Temperature -20°C to 200°C
  • Speed 2900 RPM(max)

Seal Face Material:

Carbon, Silicon Carbide, Tungsten Carbide.

Secondary Sealing:

Silicon, Viton, NEOPRENE.

Metal Components:

SS 316, SS 304.

Application

Chemical Process Pump, Oil Refineries, Thermal Power Plants, Nuclear Plant, Petroleum, Paper, Pulp Industries.

Features

Maintenance Free, Optimum Thickness, Inside Mounted, Long Service Life.
