Wave Spring Mechanical Seal - Pump Seals

Pump Seals

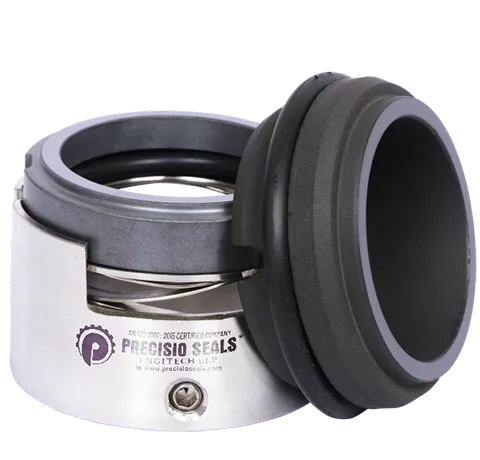

Wave Spring Mechanical Seal

Code: PS82WS

Wave spring seals deliver uniform face pressure and longer service life, ensuring consistent sealing performance in high-duty pump operations.

Request a Quote

Operating Limits

  • Shaft dia 14mm to 100mm
  • Pressure 16 bar(max)
  • Temperature -45°C to 200°C
  • Speed 2900 RPM(max)

Seal Face Material:

Carbon, Silicon Carbide, Tungsten Carbide, Ceramic(99.5%), Stellite.

Secondary Sealing:

EPDM, TTV, GFT, SILICON, VITON, PTFE, NEOPRENE.

Metal Components:

SS 316, SS 304.

Application

Paper and Pulp Industries, Sugar, Waste Water, Dairy Industries, Clean Water, Sewage water, Oil Refineries.

Features

Universal Application Opportunities, Self Cleaning Effect.
